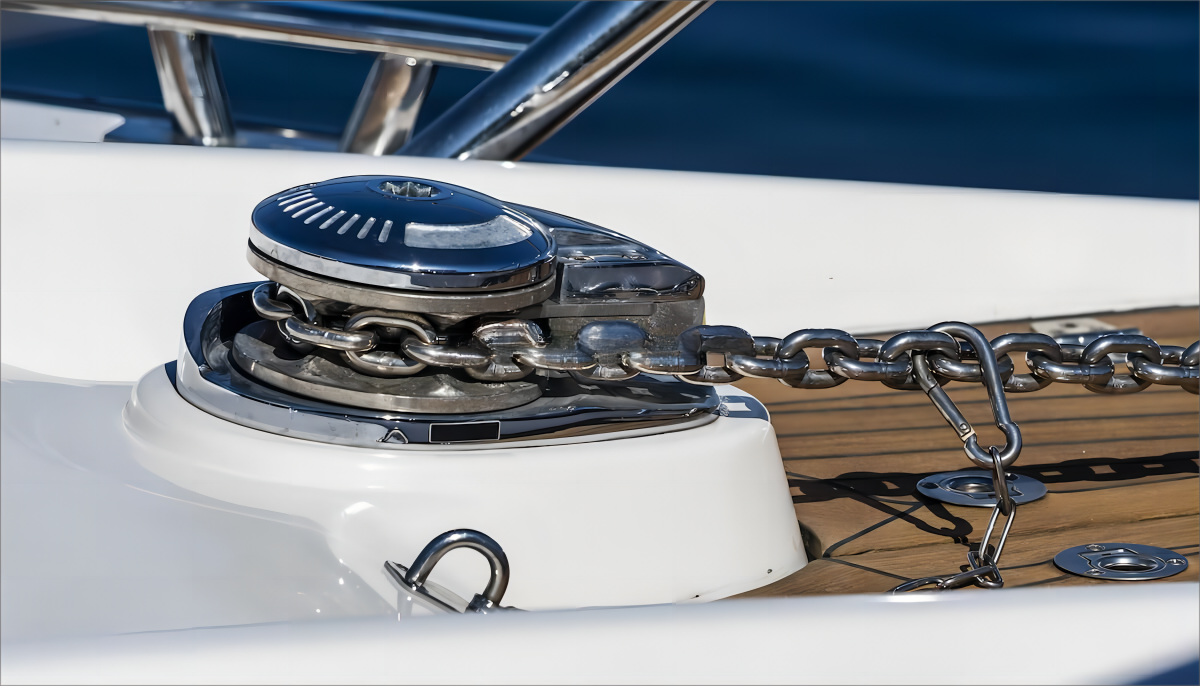

Alastin Factory Price Metal Marine Boat Electric Vertical Anchor Windlass

Short Description:

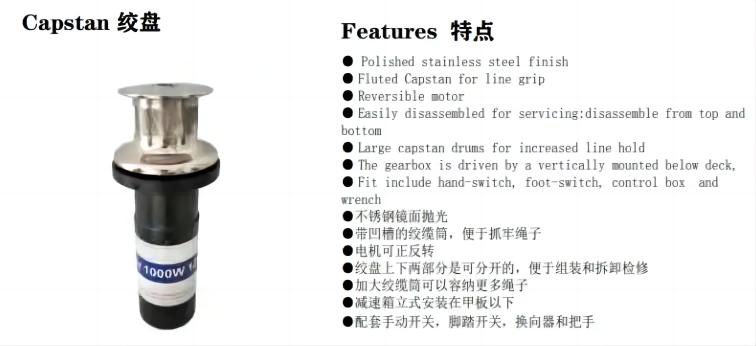

- Polished stainless steel finish

- Fluted Capstan for line grip

- Reversible motor

- Easily disassembled for servicing:disassemble from top and bottom

- Large capstan drums for increased line hold

- The gearbox is driven by a vertically mounted below deck.

- Fit include hand-switch, foot-switch,control box and wrench


Product Detail

Product Tags

Model Net Weight(KG) Power Supply Motor AMPS@Working load Max.Load Max.Pull Line Speed Rope Size(mm) Chain Size(mm)
ALS411/411H 12/12.6 12v/24v 400w 30A/20A 125kg 420kg 30m/min 14/16 6/7
ALS511/511H 12.3/13 12v/24v 600w 60A/40A 186kg 560kg 25m/min 14/16 6/7
ALS611/611H 19/21 12v/24v 800w 100A/50A 250kg 700kg 20m/min 18/20 8/10
ALS711/711H 24/25.5 12v/24v 1200w 120A/75A 400kg 1200kg 20m/min 18/20 8/10
ALS811/811H 29/31.5 12v/24v 1600w 165A/90A 660kg 1600kg 20m/min 18/20/26 8/10/12
ALS1011/1011H 30.5/33 12v/24v 2000w 165A/90A 660kg 1900kg 20m/min 20/26/28 10/12/13

  • Transportation

    We can choose the mode of transportationaccordina to vour needs.

    Land Transport

    Land Transport

    20 years of freight experience

    • Rail/Truck
    • DAP/DDP
    • Support Drop shipping
    Air Freight/Express

    Air Freight/Express

    20 years of freight experience

    • DAP/DDP
    • Support Drop shipping
    • 3 Days delivery
    Ocean Freight

    Ocean Freight

    20 years of freight experience

    • FOB/CFR/CIF
    • Support Drop shipping
    • 3 Days delivery

    PACKING METHOD:

    Internal packing is bubble bag or independent packing the outer packing is carton, the box is covered with waterproof film and tape winding.

    pro_13
    pro_15
    pro_014
    pro_16
    pro_17

    We use inner packing of thickened bubble bag and outer packing of thickened carton. A large number of orders are transported by pallets. We are close to
    qingdao port, which saves a lot of logistics costs and transportation time.
